Placard VS55 with BrightSign Built-In | Praevar

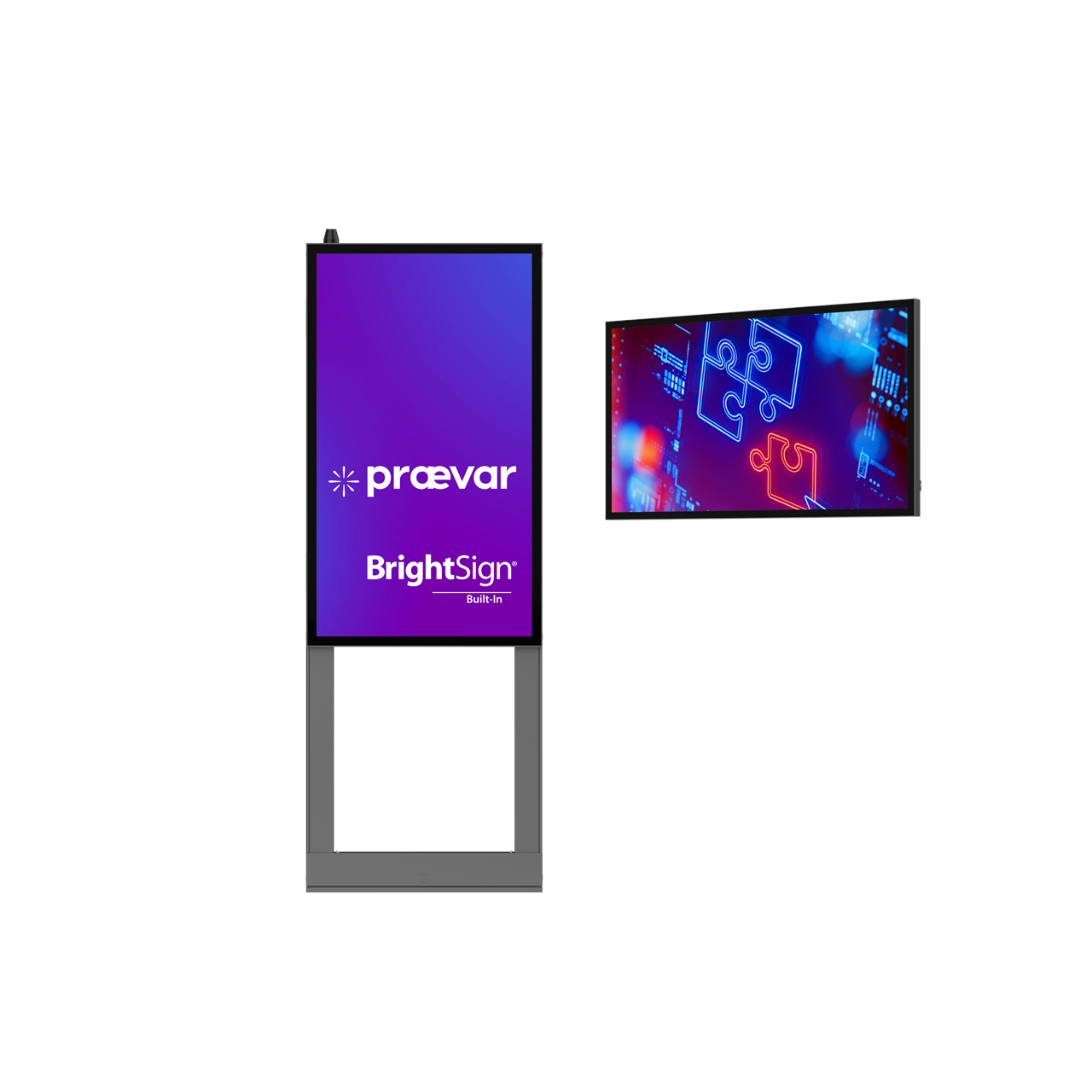

Placard VS55 with BrightSign Built-In

Wall-mounted or free standing 55" landscape or portrait semi-outdoor digital display.

Featuring

  • BrightSign Built-in Media Player
  • Impact Resistant Glass
  • Weather Resistant to IP56

Placard VS55
BrightSign Built-In

Placard displays are rugged environmentally sealed systems, typically deployed as platform displays within rail networks, both above and below ground.

VS series product is designed for semi-outdoor applications that are not subject to direct sunlight, and integrates a 1500nit LCD display with direct LED back-lighting, this single face 55" display could either be attached directly to the wall with a swing frame kit or a floor standing kit. The floor standing kit can be optioned with a double sided display configuration.

A HS145-BrightSign Built-In 4K is included.

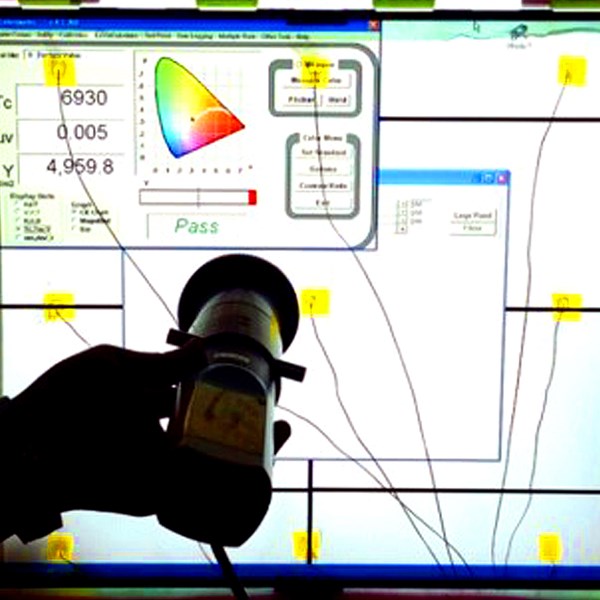

engineer-luminance-engineer-check

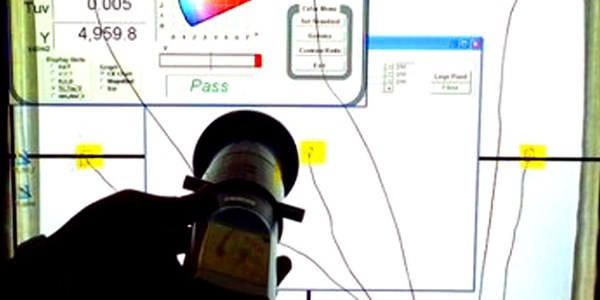

engineer-luminance-engineer-check

High Brightness Displays

With backlight luminosity levels automatically & seamlessly varying from 350 to 2500cd/m2 [nits] according the ambient light level, these displays provide best-in-class contrast and color saturation for visibility outdoors, and have a lifetime of no less than 50,000hrs. Direct LED illumination creates the most consistency of luminance across the panel backlight, delivering high efficiency and controllability in service.

Do you have a project?

Talk to the experts

Digital Display Specifications

Downloads


Model
Placard VS55 with BrightSign Built-In
Market
Digital-out-of-Home, Transit, Retail
Resolution
3840x2160
Environment
Indoor, Semi-Outdoor
Environmental Management
Sensor Driven Self-Governing, Telemetry
Display Size
55
Platform
Placard VS
Brightness
1500 nits
IK Rating
08
Orientation
Portrait, Landscape
Media Player
BrightSign Built-In HS145 4K
Faces
Single
Certification
CE, CCC, UL62368, UL50e, FCC

Media Player Specifications

Model
HS145-BrightSign Built-In 4K
Power Consumption
18W
Audio Support
MP2, MP3, AAC, AC3 (passthrough)
Image Formats
BMP, JPEG, PNG
HTML Support
HTML5, CSS5, JavaScript, SVG, WebGL
Power Supply
12V/1.5A
Video Containers
.ts, .mov, .mp4, .mkv
Playback Resolution
4K
Video Formats
4K Video H.264, 4K Video H.265
